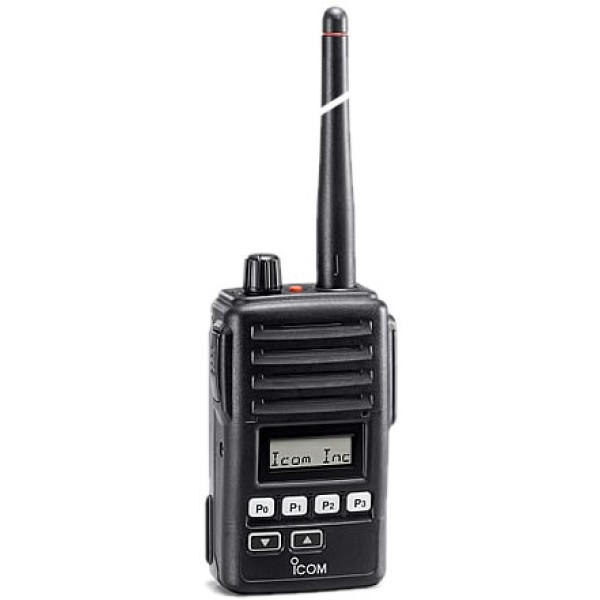

Icom F51/61 ATEX Radio

Brand: Icom Walkie Talkie Products
Product Code: Icom F51/61 ATEX
Availability: In Stock
£435.00 Ex. VAT
£522.00 Inc. VAT

Icom is pleased to introduce the new ATEX versions of the IC-F51 and F61, conforming to the 94/9/EC ATEX Directive. The IC-F51 series is a waterproof PMR transceiver whose construction is equivalent to IPX7 which is the same rating as our marine handheld models. In addition, built-in signalling capabilities and UT-110 compatible voice scrambler function eliminate the need for an optional logic board. The IC-F51 series meets the requirements for a tough, waterproof communications tool for use in hazardous areas such as oil rigs, areas where flammable gases or liquids are used, and other potentially explosive environments.

* Equivalent to IPX7 of the corresponding International Standard IEC 60529(2001). 1m depth for 30 minutes.

This ATEX approved IC-F51/F61 transceiver offers safety approved 2-way communication preventing explosion and fire hazard in specified hazardous areas.



Approved classes



The approved rating is II2G EEx ib IIA T3.



Special conditions for use:

• Must be used with BP-227AX



  Approved accessories:

• Speaker-microphone HM-138



Please ensure the IC-F51/F61 ATEX rating is acceptable for the intended place of use.



These ATEX models have all the same functions and features as non-ATEX versions including;



Waterproof construction

The IC-F51 series has waterproof construction which is equivalent to IPX7. The IC-F51 series can withstand submersion in 1m depth of water for up to 30 minutes.



Tough and compact body

The aluminium die-cast chassis combined with a polycarbonate casing is designed to last. Its compact dimensions of 56 (W) 97 (H) 36 (D) mm allow the IC-F51 series to fit comfortably in your palm or shirt pocket.



Standard Lithium-Ion battery pack

The IC-F51 series comes with a standard 1700mAh Lithium-Ion battery pack, BP-227AX that provides stable output power and a practical 13 hours* of operating time. Lithium-ion batteries allow flexible charging** and have almost no memory effect.


*Typical operation; Tx:Rx:Stand-by duty cycle=5:5:90

** Please note that ATEX radios should not be charged in hazardous environments.
